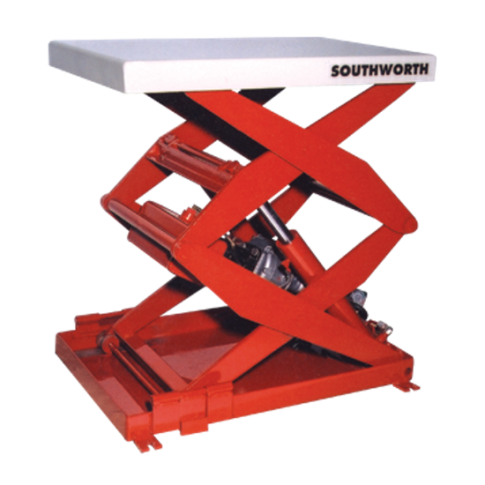

Southworth Backsaver Lite Compact LS1-30
These industrial grade lift tables are specifically designed for those applications involving lighter loads of up to 1,000 lbs. The Southworth Backsaver Lite Compact lifts feature a double scissor mechanism to provide a full 36" of lifting height in a very small 12" x 24" footprint. Oversize platforms to 24" x 36" are available. Available in four standard configurations:
- Compact with high lift and small footprint
- Portable with easy rolling casters
- Powered Portable with battery powered drive
|Features & Benefits||
Available Accessories include:
PORTABILITY / DOLLY A mini-dolly that consists of a steel dolly with two swivel and two rigid side mounted hard rubber casters, and a foot operated floor lock.
BELLOWS ACCORDIAN SKIRTING Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.
UPPER TRAVEL LIMIT SWITCH Prevents lift from traveling past a preset height.
LOWER LEVEL LIMIT SWITCH prevents the lift table from traveling below a preset level.
EXTERNAL POWER UNIT External Mount of any standard internal power unit, includes five feet of hydraulic hose and return line.
AIR POWER UNIT & CONTROLS 1.0 gpm at 80 psi and 80 cfm free air, with lift fully loaded, hand or foot valve control included. 5 feet of hose included. Filter, regulator and lubricator not included. (External mount; for stationary units only.)
|Lift Capacity||1000 lbs|
