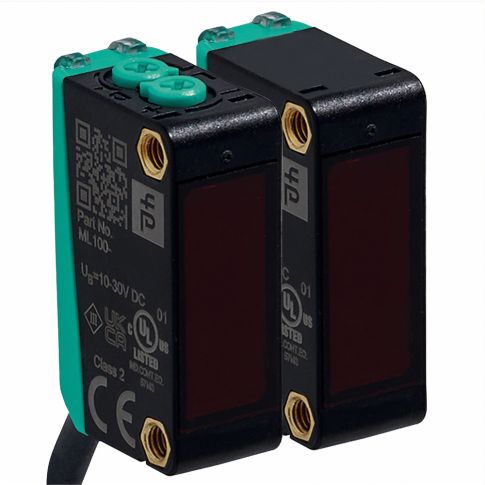

Pepperl & Fuchs Receiver MV100-RT/103/115
SKU
MV100-RT/103/115
Through-beam sensor, 10 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, fixed cable. Available individually, but typically paired with an emitter.
In Stock: 0
Backorder Lead Time 3-4 weeks
- Effective detection range: 0 ... 10 m
- Threshold detection range: 15 m
- Light source: LED
- Light type: modulated visible red light
- Diameter of the light spot: approx. 1 m at a distance of 15 m
- Opening angle: approx. 2 °
- Optical face: frontal
- Ambient light limit: EN 60947-5-2
- Height: 31 mm
- Width: 11 mm
- Depth: 20 mm
- Cable length: 2 m
More Information
Description | In through-beam photoelectric sensing, also known as opposed mode, the transmitter and emitter are in separate housings. Light emitted from the transmitter is aimed directly at the receiver. When an object breaks the beam of light between the emitter and receiver, the receiver’s output changes state. Through-beam sensing is the most efficient sensing mode which results in the longest sensing ranges and highest excess gain. This high gain enables through-beam sensors to be reliably used in foggy, dusty and dirty environments. |
---|
