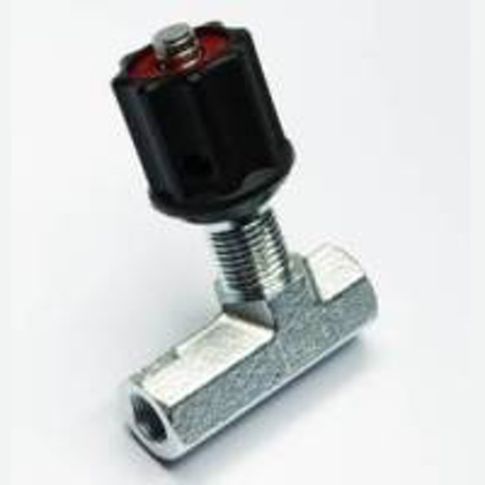

HYDAC Throttle Return Valve DRV-40-01.1/0
SKU
705598
HYDAC (Flutec) Throttle Return Valve DRV-40-01.1/0, Flow Control Needle Valve with Reverse Flow Check, direct-acting, inline mounted, zinc-plated housing, G2 threaded connection, Pmax 350 bar, Qmax 300 lpm
Non-Stocking Item
Lead Time 8-10 weeks
- Pmax: 350 bar
- Qmax: 300 lpm
- For regulating the speed of loads
- For fine adjustment and shut-off of the flow
- For system-related damping in hydraulic circuits
- To release pressure from accumulator systems
- As an emergency drain for lowering a load without a dead man's circuit z
- Spindle patented secured before complete loosening
- An Allen set-screw locks the setting of the knob
- Choice of four sizes for optimum adaptability to the system
- Nickel-plated version available as an option
