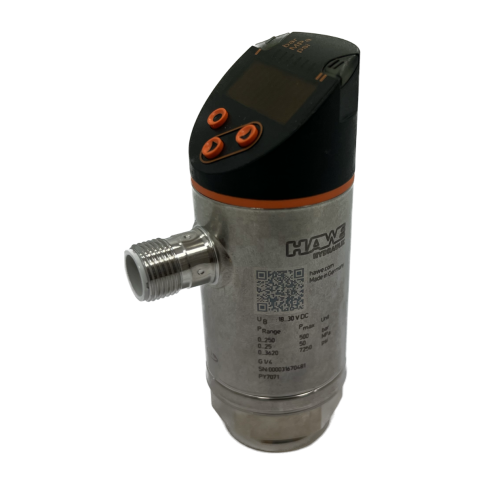

HAWE Pressure Switch DG 51E-I-250
SKU
DG 51E-I-250
HAWE Pressure Switch DG 51E-I-250 (Was DG 5E-250)
Non-Stocking Item
Lead Time 3-4 weeks
- Pressure Range: 0-250 Bar
- Integrated visual function display
- Pressure indication (adjustable bar, PSI or MPa) can be read in standing or hanging position
- Refresh interval for the indication can be selected (50 to 600 ms)
- Indication function can be cut-off
- Easy, straight forward operation and programming
- Both signal outputs are overload resistant and short-cut proof
- High adjustment accuracy and repeatability
More Information
| Description | Intended for high-end applications where e.g. two switch points, high switch operation accuracy, repeatability, programmable hysteresis, high switching frequency and acceleration resistance are a must. Additional feature is the DESINA compatibility and the pressure gauge functionality The electronic pressure switches type DG 5 E-... work according to the capacitive principle. They are equipped with high-quality electronics, feature easy handling and are very reliable. |
|---|---|
| Valve Flow Pattern | N/A |
| Valve Size | N/A |
| Valve Function | N/A |
