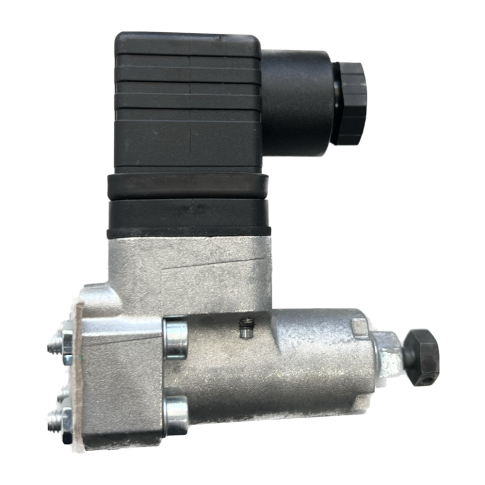

HAWE Pressure Switch DG 35
SKU
DG 35
HAWE Pressure Switch DG 35, manifold mounting, G 1/4 port, pressure setting with set screw
In Stock: 13
Need more? Lead Time 3-4 weeks
- Pressure Range: 20-250 Bar
- Design: Spring loaded piston type pressure switch, zero leakage
- Temperature: Ambient: approx. -40...+80°C
- Pressure fluid: Hydraulic fluid acc. to DIN 51524
- Viscosity range: min. approx. 4; max. approx. 1500 mm2/sec
- Optimal operation range: approx. 10...500 mm2/sec
- Weight: 0.3 kg
More Information
| Description | Pressure switches open and close an electrical contact at a previously defined pressure. As soon as the pressure is reached, a further work step is started or stopped by an electrical signal. |
|---|---|
| Valve Flow Pattern | N/A |
| Valve Size | N/A |
| Valve Function | N/A |
