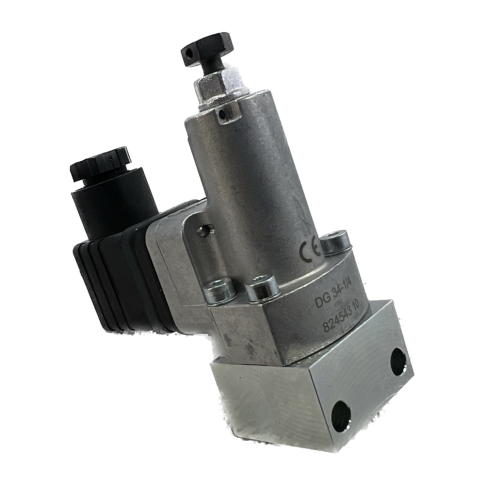

HAWE Pressure Switch DG 34-1/4
SKU
DG 34-1/4
100 to 400 bar, can replace DG 2 HS
In Stock: 3
Need more? Lead Time 3-5 weeks
- Replaces: HAWE DG 2 HS
- Pressure Range: 100-400 Bar
- Design: Spring loaded piston type pressure switch, zero leakage
- Temperature (Ambient): approx. -40...+80C
- Pressure fluid: Hydraulic fluid acc. to DIN 51524
- Viscosity range: min. approx. 4; max. approx. 1500 mm2/sec
- Optimal operation range: approx. 10...500 mm2/sec
More Information
| Description | Pressure switches open and close an electrical contact at a previously defined pressure. As soon as the pressure is reached, a further work step is started or stopped by an electrical signal. Different versions (with pressure setting on an adjusting knob, main and secondary switch, screw-on pressure switch) enable their use in a wide range of applications. |
|---|---|
| Valve Flow Pattern | N/A |
| Valve Size | N/A |
| Valve Function | N/A |
