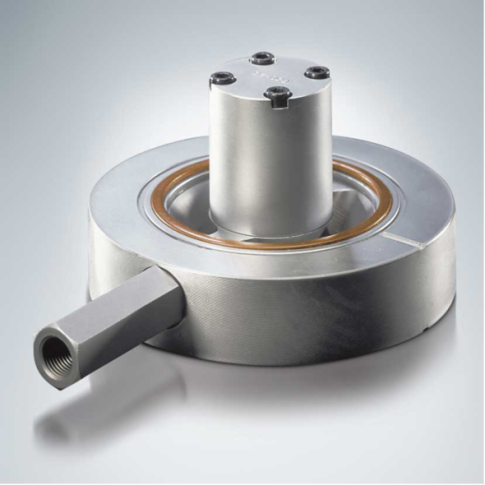

HAWE Pre-fill Valve F 100-45
- Pmax: 400 bar
- Qmax: 1600 lpm
More Information
| Description | HAWE ("hah'-vay") check valves and pre-fill valves are a type of non-return valve. Check valves block the oil flow in one direction and open in the other direction. Pre-fill valves are check valves with hydraulic release.They are used, e.g. in top ram presses for suction and emptying the press cylinder on rapid closing and opening. The check valve and pre-fill valve type F is a spring-loaded disk valve and has zero leakage in the closed state. The valve is attached directly to the cylinder and clamped between the base of the cylinder and the welding-neck flange. Alternatively the valve is installed in the line between the front faces of the welding-neck flanges. The valves type F25 - F80 are available with hydraulic release. Hydraulic release suppresses relief surges that can occur at high pressure |
|---|---|
| Valve Make | Hawe |
| Valve Type | Pre-fill Valves |
| Valve Series | F |
| Valve Flow Pattern | N/A |
| Valve Size | 100 |
| Valve Function | N/A |
