HAWE Directional Seated Valve EM 31 V for LAWECO

SKU
209198 34-0004-0012
Hawe EM 31 V, 80 L/Min, 400 bar, Type NC
Non-Stocking Item
Lead Time 2-3 weeks
$541.00
  • Old article # 34-0004-0012
  • New article # 209198

Features:

  • Zero leakage in blocked state
  • Piloted switching up to 160 lpm
  • Minimized back pressure even at high flows
  • Long service life due to hardened valve seats


Intended applications:

  • Cranes and lifting equipment
  • Road construction industry
  • Materials handling, industrial trucks etc.
  • Handling and assembly robots, etc.

More Information

More Information
Description

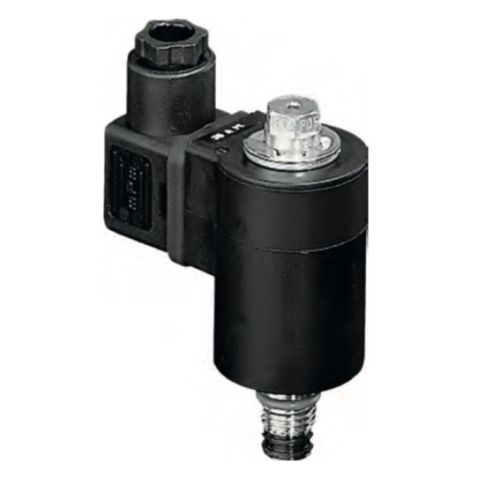

Hawe EM directional, ball seated valves are zero leak, 2-position / 2-way, on-off, cartridge valves pilot actuated by a solenoid. A piloting duct of a stepped piston is opened or closed generating a pressure difference at the opposing facial areas of the piston forcing it in the open or closed position. The wet armature solenoids for the valve actuation are pressure resistant, where all moving internal parts are flushed by oil. There is a wide range of connection blocks either for pipe connection or for banjo bolt mounting, which may feature optional elements such as drain valve, by- pass throttle, pressure switch, 2-way flow control valve, etc.

Valve Make Hawe
Valve Type Directional Seated Valves
Valve Series EM
Valve Flow Pattern N/A
Valve Size 3
Valve Function N/A
