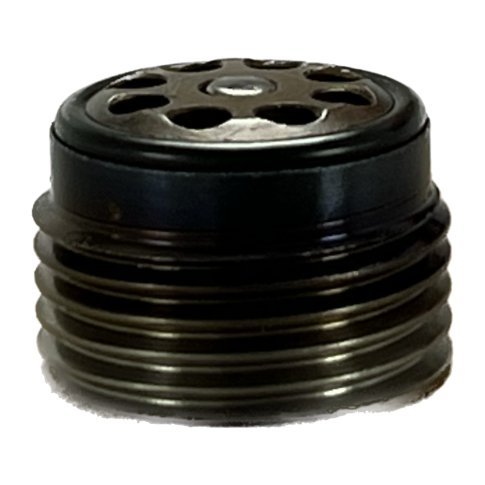

HAWE Check Valve RB 2 UNF
Check valve size 2, 50 lpm, 700 bar, 3/4-16 UNF thread
- Pmax: 700 Bar
- Qmax: 50 liters per minute
- Thread: 3/4-16 UNF
More Information
Description | Check valves are a type of non-return valve. They block the oil flow in one direction and open in the opposite direction. In the closed state they have zero leakage. The check valve type RK, RB, RC and RE can be screwed-in, type ER can be plugged-in. The spring-loaded ball check valve type RK, RB and ER is very robust and insensitive to soiling. The spring-loaded plate valve type RC can be screwed-in in any direction and is particularly suitable for fast switching sequences. Type RE is a plate valve without a spring. Type ER can be integrated directly in valves for manifold mounting. As such an additional intermediate plate is not necessary for the check valve function. Type RE is suitable for isolating pressurizing loads or as a foot valve for a pump suction pipe. Features and benefits:
Intended applications:
|
---|---|
Valve Make | Hawe |
Valve Type | Check Valves |
Valve Series | RB |
Valve Flow Pattern | N/A |
Valve Size | N/A |
Valve Function | N/A |
