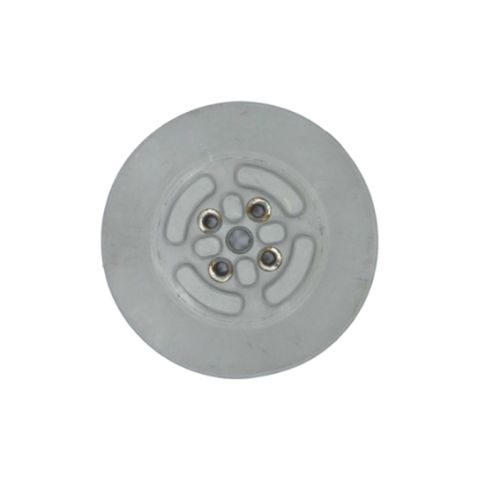

euroTECH Suction Cup BLSP 150 CO (NBR Gray) w/ Baseplate
SKU
BLSP.150.121.000
euroTECH NBR Gray Suction Cup BLSP 150 CO w/ aluminum Baseplate (BLSP.150.121.000) with 150mm diameter, 44mm height. Baseplate with 1/4” diameter connection hole.
In Stock: 50
Need more? Lead Time 3-4 weeks
- Diameter: 150 mm
- Carrying capacity (vertical): 47 Kg
- Carrying capacity (horizontal): 94 Kg
- euroTECH article # BLSP.150.121.000
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information
| Description | The seal has supports at the bottom side and a long seal lip. This series of flat suction cups is extremely robust and durable. The seal is screwed with four screws against the aluminum Baseplate from the bottom side. If the connection of G ¼“ is not large enough the centre hole will be drilled and tapped according to you specifications. Areas of application: These flat suction cups are ideally suitable for handling of smooth and slightly coarse work pieces (e.g. sheets, wood panels and glass plates.) |
|---|---|
| Style | Flat |
| Shape | Round |
| Material | NBR Grey |
| Includes | Suction Cup with Baseplate |
