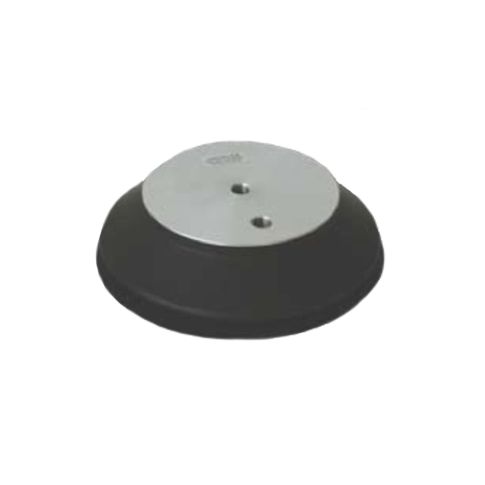

euroTECH Suction Cup BBSC 250 R-MIS w/ Baseplate

SKU
BBSC.250.111.002
euroTECH NBR Black Suction Cup BBSC 250 R-MIS w/ aluminum Baseplate (BBSC.250.111.002) with 250mm diameter, 75mm height, 1.5 folds. Baseplate has two 3/8” inside thread holes.
Non-Stocking Item
Lead Time 3-4 weeks
$207.50
  • Diameter: 250 mm
  • Carrying capacity (vertical): 223 Kg
  • Carrying capacity (horizontal): 447 Kg
  • Replacement seal BSPS.10.464
  • Clamping Clip BSPS.11.023
  • euroTECH article # BBSC.250.111.002
  • Special discounts available for ordering larger quantities, Please contact us for quote.

More Information

More Information
Description

Bellow suction cup type BBSC 250 R-MIS NBR black, Ø 250 mm with 1,5 folds andaluminum Baseplate. Centric hole with G 3/8"and 53 mm out of center another hole with G 3/8".

The aluminum Baseplate has a centric hole with a 3/8“inside thread as well as 1 threaded hole with 3/8“, 53 mm eccentric.Quick and cost-saving change of the seal by meansof the clamping clip.

Style Bellows
Shape Round
Material NBR Black
Includes Suction Cup with Baseplate
