euroTECH Suction Cup BBSC 200 R BY w/ Baseplate 1/4" X M8

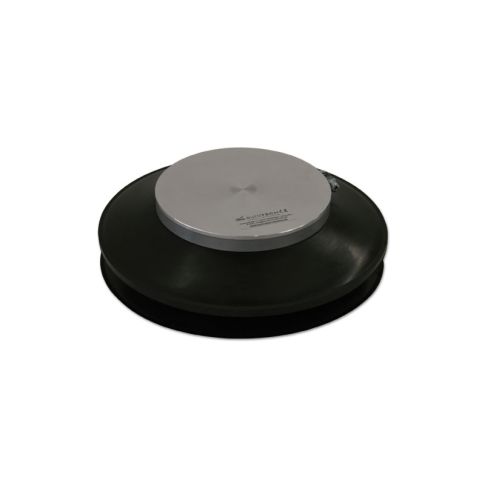

euroTECH NBR Black Suction Cup BBSC 200 R BY w/ aluminum Baseplate (BBSC.200.111.010) with 200mm diameter, 68mm height.
- Width: 200 mm
- Carrying capacity (vertical): 77 Kg
- Carrying capacity (horizontal): 155 Kg
- euroTECH article # BBSC.200.111.010
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information
Description | The bellow suction cup of series BBSC 200 R is made of NBR black and has 1,5 folds.The diameter of the seal is 200 mm. The seal is pulled onto an aluminum Base plate and is fixed with a clamping clip. The seal can be exchanged quickly and cost-efficiently by unfixing the clamping clip. On request, we deliver center bores with different thread sizes. As a result of the elasticity, the bellow suction cup can adapt optimally to the curvature of the work piece and compensate height differences. This bellow suction cup is suitable for destacking devices in the glass industry due to its robust construction.In case of wear, the seal can be exchanged quick and cost saving by loosening the clamping clip.The drilling template can be adapted to the customers needs on request. Ø 200 mm with 1,5 folds in NBR black and aluminium base plate. 1/4" inside thread as vacuum connection and 2 threaded holes with M8 inside thread. |
---|---|
Industry | All |
Style | Bellows |
Shape | Round |
Material | NBR Black |
Includes | Suction Cup with Baseplate |
