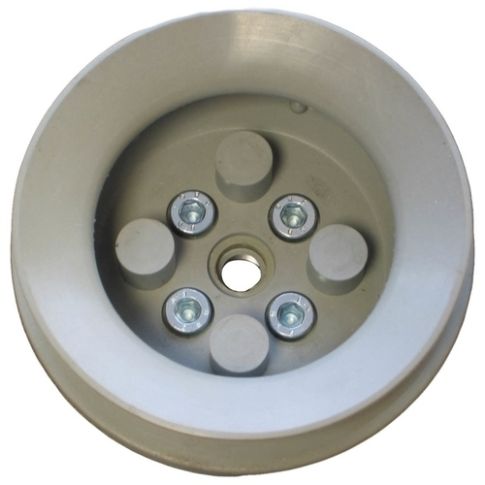

euroTECH Suction Cup BBSC 110 CO (NBR Gray)
SKU
BSPS.10.155
euroTECH NBR Gray Suction Cup BBSC 110 CO (BSPS.10.155) with 116mm diameter, 71mm height.
Non-Stocking Item
Lead Time 1-2 weeks
- Diameter: 110 mm
- Carrying capacity (vertical): 30 Kg
- Carrying capacity (horizontal): 60 Kg
- euroTECH article # BSPS.10.155
- article # new: M004202
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information
Description | This cup is often used for raw board separation. This series of bellow suction cups is extremely robust and durable. The seal is mounted against the aluminum Baseplate with four screws from the bottom side. The center bore will be made according to your specifications. The seal has a vulcanized steel ring Areas of application: The bellow suction cups can be used universally and are mostly used in palletizing systems for stacking heavy work pieces. Various tapping of the center hole can be done up on request. |
---|---|
Style | Bellows |
Shape | Round |
Material | NBR Grey |
Includes | Suction Cup Only |
