euroTECH Suction Cup Assembly BSP 160 R, A-P (NBR Black) 16 x 178

SKU
BSP.160.111.AP.003

Suction Cup Assembly BSP 160 R, A-P (BSP.160.111.AP.003), BSP 160 R 160mm suction cup, NBR Black. Aluminum baseplate with 1x G1/8" vacuum connection. M16 x 178mm suspension bolt, 10° articulation.

In Stock: 0
Backorder Lead Time 3-4 weeks
$192.00
  • Part #: ?
  • Drawing #: BSP.160.111.AP.003
  • Style: Flat
  • Diameter: 160 mm
  • Stroke: 4.00 mm
  • Material: NBR Black
  • Attachment: Clamp-on
  • Carrying capacity (vertical): 57 kg
  • Carrying capacity (horizontal): 115 kg
  • Weight: 1.074 kg

More Information

More Information
Features & Benefits

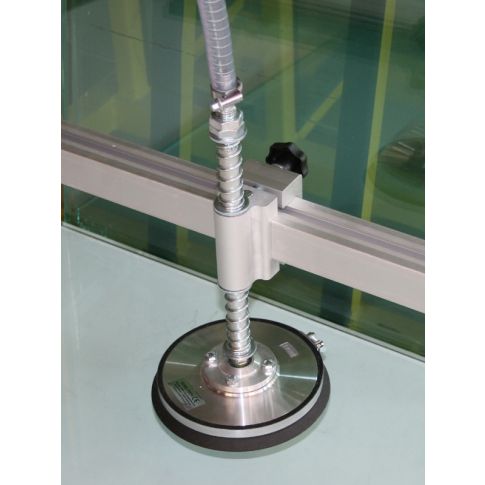

This suction cup assembly consists of a 160mm BSP 160 R in NBR Black attached via a clamping clip to an aluminum baseplate with 1x G1/8" vacuum connection, an A-P 10° articulation piece, and a 16 x 178mm suspension bolt. The articulation piece mounted between the baseplate and the suspension bolt permits the baseplate to adapt itself to curvature of thin material.

Used by Hegla

Includes:

  • Baseplate: B002247
  • Suction Cup: M004071 (BSPS.10.009)
  • Clamping Clip: M004737 (BSPS.11.002)
  • Suspension bolt: 16 x 178mm
Industry All
Style Flat
Shape Round
Material NBR Black
Baseplate Included Yes
Machines N/A
