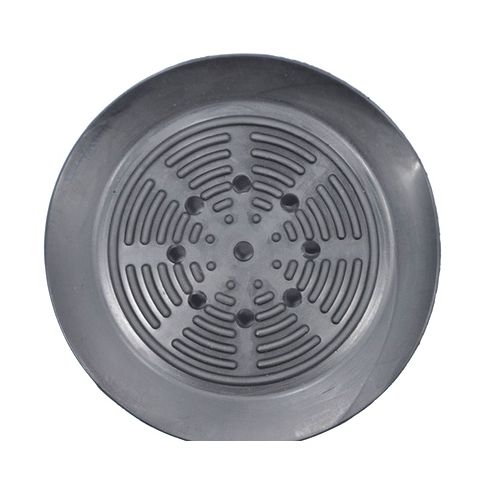

euroTECH Suction Cup Assembly BSP 120 RL A-P No Suspension Bolt (NBR Black)
SKU
BSP.120.111.AP.008
Suction Cup Assembly BSP 120 RL A-P (BSP.120.111.AP.008) includes a 120mm suction cup in NBR Black attached to an aluminum baseplate via a clamping clip. Baseplate includes an A-P suspension with a removable back plate, an articulation piece with M16 inside thread, M20 outside thread. Suspension bolt is NOT included.
Non-Stocking Item
Lead Time 3-4 weeks
- euroTECH part #:
- euroTECH drawing #: BSP.120.111.AP.008
Specifications:
- Style: Flat
- Diameter: 120 mm
- Stroke: mm
- Material: NBR Black
- Attachment: Clamp-on
- Carrying capacity (vertical): 25 kg
- Carrying capacity (horizontal): 51 kg
- Suspension bolt NOT included
- Weight: kg
Includes:
- Baseplate:
- Suction cup: BSPS.10.206
- Clamping Clip: BSPS.11.001
- Articulation piece:
Quantity discounts available
More Information
| Description | Used by Hegla, the Suction Assembly BSP 120 RL A-P consists of a 120 mm suction cup in NBR Black attached to an aluminum baseplate via a clamping clip. The baseplate features an A-P suspension (vacuum is supplied centrally through the articulation piece), an articulation piece with M16 inside thread for 10° pivoting on all sides is secured with a removable back plate. The groove rubber support of the suction cup prevents deformation of the material, and the articulation piece between the baseplate and suspension bolt (10° to all sides) allows the suction plate to adapt itself to the curvature of thin material. |
|---|---|
| Style | Flat |
| Shape | Round |
| Material | NBR Black |
| Includes | Suction Cup Complete Assembly |
