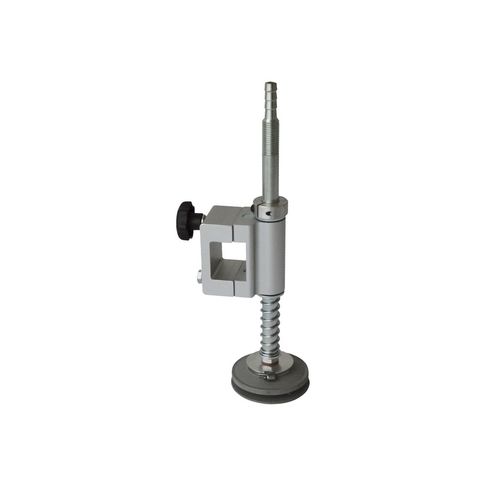

euroTECH Suction Cup Assembly BBSCP 80 R-BA (NBR Gray)
SKU
BBSCP.080.121.ST.001
euroTECH NBR Gray Suction Cup Assembly BBSCP 80 R-BA (BBSCP.080.121.ST.001) with 80mm diameter, 327.5mm height. 12mm diameter suspension bolt connected to aluminum baseplate.
Non-Stocking Item
Lead Time 3-4 weeks
- Diameter: 80 mm
- Carrying capacity (vertical): 11 Kg
- Carrying capacity (horizontal): 24 Kg
- Replacement seal BSPS.10.314
- Clamping clip: BSPS.11.063
- euroTECH article # BBSCP.080.121.ST.001
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information
| Description | Bellow suction cup type BBSC 80 RØ 80 mm with seal in NBR grey, 1,5folds and aluminum Baseplate with 1/4"inside thread. The seal is replaceable. The aluminum base pate has an center hole with G 1/4‚Äù inside thread. Installed is an suspension bolt Ø 16 x 280 mm long with hose nipple, cross clamping piece 40x40 and lower steel spring. Good height adjustment possible due to the installed clamping collar on top of the suspension bolt. A longer spring can be installed. By wear it is easy to change the seal by loosening the clamping clip. Quick and inexpensive replacement of the seal.Our vacuum components are assembled according to your demand, drawing or sample. |
|---|---|
| Style | Bellows |
| Shape | Round |
| Material | NBR Grey |
| Includes | Suction Cup Complete Assembly |
