euroTECH Suction Cup Assembly BBSCP 250 R-BA (NBR Gray)

SKU
BBSCP.250.121.SP.001

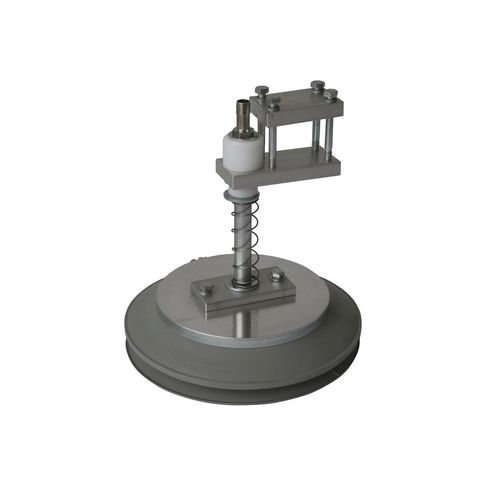

euroTECH NBR Gray Suction Cup Assembly BBSCP 250 R-BA (BBSCP.250.121.SP.001) with 250mm diameter, 285.5mm height. 18mm diameter suspension bolt attached to aluminum baseplate.
In Stock: 0
Backorder Lead Time 3-4 weeks
$395.00
  • Diameter: 250 mm
  • Carrying capacity (vertical): 132 Kg
  • Carrying capacity (horizontal): 265 Kg
  • Replacement seal BSPS.10.108
  • Clamping clip: BSPS.11.005
  • euroTECH article # BBSCP.250.121.SP.001
  • Special discounts available for ordering larger quantities, Please contact us for quote.

More Information

More Information
Features & Benefits

Bellow suction cup type BBSC 250 R-BA, specialSeal Ø 250 mm with 1,5 folds in NBR gray,aluminum Baseplate with articulated suspensionbolt Ø 18 x 184 mm, flow control and installedaluminum cross clamping set include a lowerpressure spring.

The Baseplate is made from aluminum with an articulated installed suspension bolt Ø 18 x 184 mm long with hose nipple, aluminum clamping system and lower spring. By wear it is easy to change the seal by loosening the clamping clip. Quick and inexpensive replacement of the seal. Central vacuum supply through the suspension bolt.

Our vacuum components are assembled according to your demand, drawing or sample.

Style Bellows
Shape Round
Material NBR Grey
Baseplate Included Yes
