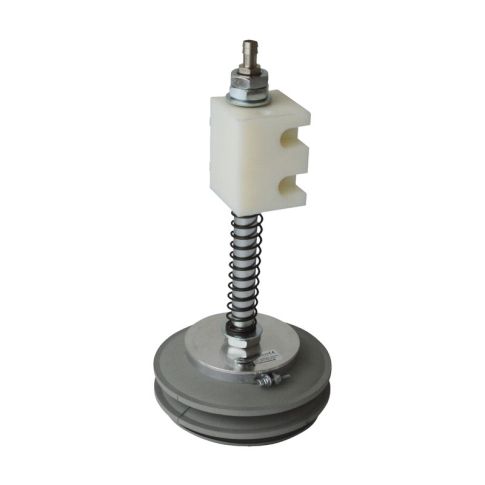

euroTECH Suction Cup Assembly BBSCP 150-2.5F (NBR Gray)
SKU
BBSCP.153.121.ST.002
euroTECH NBR Gray Suction Cup Assembly BBSCP 150-2.5F (BBSCP.153.121.ST.002) with 150mm diameter, 358mm height. 12mm diameter suspension bolt connected to aluminum baseplate.
Non-Stocking Item
Lead Time 3-4 weeks
- Diameter: 150 mm
- Carrying capacity (vertical): 43 Kg
- Carrying capacity (horizontal): 87 Kg
- Replacement seal BSPS.10.148
- Clamping clip: BSPS.11.021
- euroTECH article # BBSCP.153.121.ST.002
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information
| Description | The aluminum Baseplate has an center hole with M20x1,5 inside thread. Installed is an suspension bolt Ø 20 x 260 mm long with hose nipple. PA-support and lower spring. Slight height adjustment with the two nuts on top of the suspension bolt. By wear it is easy to change the seal by loosening the clamping clip. Quick and inexpensive replacement of the seal. Our vacuum components are assembled according to your demand, drawing or sample. |
|---|---|
| Industry | All |
| Style | Bellows |
| Shape | Round |
| Material | NBR Grey |
| Includes | Suction Cup Complete Assembly |
