euroTECH eT-Litocran 700 Red Gazelle

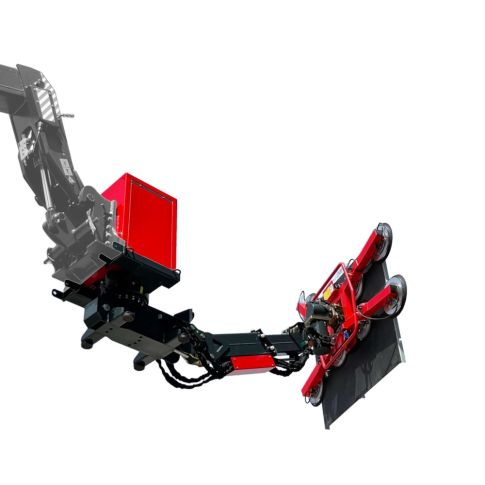

The eT-Litocran 700, or "Red Gazelle", is a stand-alone hydraulic attachment for your telescopic handler or crane. It features its own power supply, hydraulic supply and remote control. Its vacuum lifting component, the eT-Hover Univac, is removeable for independent use, if desired, and is supplied with a separate remote control.
The Red Gazelle vacuum lifting attachment mounts euroTECH's acclaimed eT-Hover Univac vacuum lifting device to an industry-first 3-D (articulating) head secured to a precision telescopic swivel arm. Designed for the most demanding installations, the module is ideal for safely manipulating glass, ceramic or metal plates, perfect for the window and façade construction industry. Equiped with 8 suction cups the unit will support loads up to 1540 lbs. Product pieces can be tilted hydraulically by 90° and rotated by 360°. The Red Gazelle has a 3-hour charging time, providing 8 hours of use.
The module currently attaches without modification to the Magni and Manitou brand telehandlers, but can be readily adapted to most any telescopic handler or crane including Merlot JCP, Sennebogen, Claas, etc.
- Horizontal load capacity: 700 kg (1540 lbs)
- Vertical load capacity: 360 kg (800 lbs)
- Rotation range: 360°
- Pivoting range: 90°
- Number of Suction Cups: 8 included (BLSP 400 RL)
- Vacuum System: Diaphragm pump; 2,1 m³/h, 12 V DC
- Battery power supply: 12 V / 4A
- Autonomy: 8 hours
- Recharge time: 3 hours
- Weight: 1500 lbs
The eT-Hover Univac by euroTECH (included with the purchase of the Red Gazelle) is a compact, modular lifting device for horizontal and vertical handling of flat, large-surface loads.
Controls are located in the aluminum frame. When used independently, the Univac can be rotated 360° and tilted by 90° either manually or electrically (with an optional upgrade). Power is supplied via a two-circuit system on 12 V battery base.
The eT-Hover Univac is suitable for large-surface loads made of glass, wood, coated chipboard or particle board, as well as other materials such as stone, metal or plastic.
