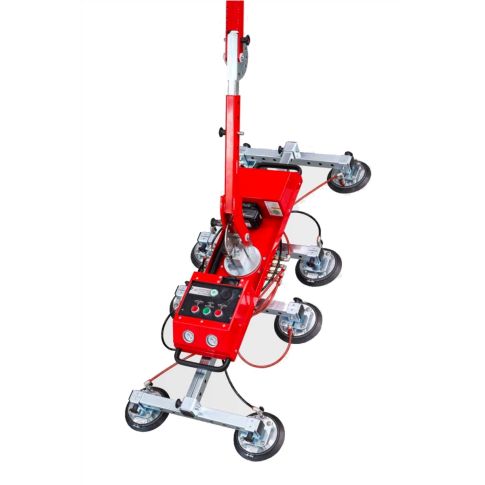

euroTECH eT-Hover Univac Line Mini
SKU
eT-Hover-Univac-Line-Mini
Flexible vacuum lifter, battery-powered, indoor/outdoor use, lightweight, space-saving design, 440 lbs capacity.
In Stock: 0
- Horizontal load capacity: Up to 200 kg (440 lbs)
- Vertical load capacity: Up to 200 kg (440 lbs)
- Rotation range: 360° continuous (manually)
- Pivoting range: 90° (manually)
- Number of suction cups: 8 (BBSC 150 R or BLSP 180 TL)
- Vacuum generator: 2 separate pumps
- Battery: 2 Bosch Pro 18 V / 4 Ah
- Dimensions (L/W/H): 1597 mm / 600 mm / 370 mm
- Weight: 33 kg (73 lbs)
- Country of origin: Germany
- Customs tariff number:
- Optional: Wireless remote control
univac-line-mini is available in two versions:
With bellow suction cups for transporting delicate workpieces with uneven, curved, or slanted suction surfaces.
With flat suction cups for transporting delicate workpieces with smooth, slightly textured, and flat surfaces.
- Suitable for panels and workpieces made of glass, metal, or plastic, and coated wood panels up to 2500 x 1000 mm
- Manual rotation range: 360° continuous
- Manual swivel range: 90°
- Compact and lightweight design, modularly expandable and variable in size
- Mains-independent battery operation with quick-change battery, control on the device or via radio remote control.
- Additional battery systems available upon request.
- Vacuum generation via 2 separate vacuum pumps
- Convenient single-person operation via an ergonomic panel, equipped with, among other features, a vacuum gauge, signal lamps, two-hand operation, and acoustic signaling devices
- Adaptable to overhead cranes, mobile small cranes, or telehandlers
- Dual-circuit system for construction site operation
