euroTECH Bellows Suction Cup BSC 150 CO 1.5 folds w/ Baseplate G 1/2" (NBR Gray)
SKU
BBSC.155.121.004
euroTECH Suction Cup BBSC 150 CO (BBSC.155.121.004), Bellows, Round, NBR Gray, Screw-on. Mounted to an aluminum baseplate with G1/2" inside thread.
Non-Stocking Item
Lead Time 3-4 weeks
- Style: Bellows
- Shape: Round
- Material: NBR Gray
- Attachment: Screw-on
- Diameter: 150 mm
- Carrying capacity (vertical): 51 Kg
- Carrying capacity (horizontal): 102 Kg
- euroTECH article #: BBSC.155.121.004
- Replaces old #: BBSC.22.04
- Replacement Suction Cup: BSPS.10.157
- Special discounts available for ordering larger quantities, Please contact us for quote.
More Information

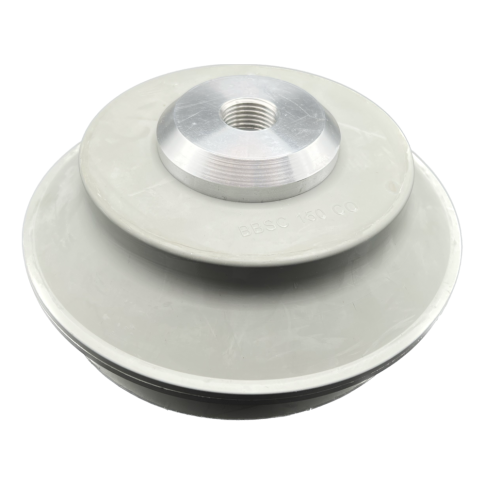

| Description | This 150 mm round bellows suction cup is often used for raw board separation, palletizing systems, or for stacking heavy work pieces, and is known to be extremely robust and durable. It has 1-1/2 folds, and is mounted to the aluminum baseplate with four screws from the bottom side. The center bore has a G 1/2" inside thread, but can be drilled and tapped according to your specifications. |
|---|---|
| Industry | All |
| Style | Bellows |
| Shape | Round |
| Material | NBR Grey |
