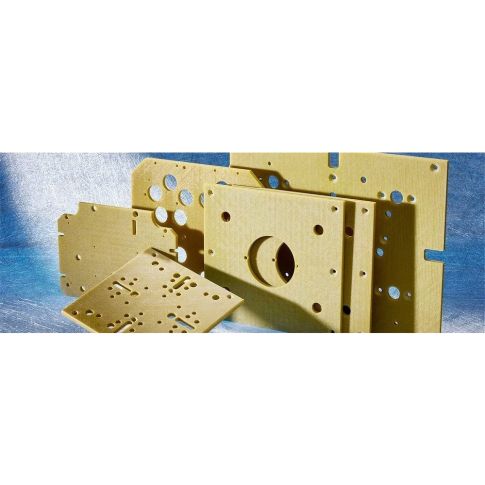

Brandenburger XGD 80
SKU
Brandenburger XGD 80
Brandenburger XGD® 80 combines an effective insulation capability with a high dimension stability under high stresses and strains. XGD® 80 is particularly suitable for applications which needs very high demands on process reliability.
Non-Stocking Item
Special material characteristics:
- Extreme high compression strength
- Long term temperature resistance
- Exceptional dimensional stability due to very low setting behavior
| Thermal | ||
|---|---|---|
| Temperature resistance (short-term) | 280 °C | 536 °F |
| Temperature resistance (long-term) | 250 °C | 5482 °F |
| Thermal conductivity | 0.25 W/mK | 0.14 btu/ft h °F |
| Coefficient of linear expansion | 11·10-6 | 11·10-6 |
| Mechanical | ||
|---|---|---|
| Compressive strength (room temperature) | 750 N/mm2 | 108778 psi |
| Flexural strength | 500 N/mm2 | 72518 psi |
| Compressive strength (200°C) | 500 N/mm2 | 72518 psi |
