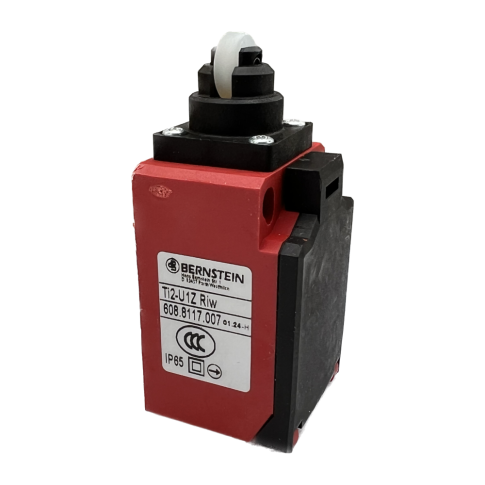

Bernstein Insulated Limit Switch Ti2-U1Z RIW
SKU
608.8117.007
Bernstein Insulated Limit Switch Ti2-U1Z RIW, 608.8117.007, plastic housing
In Stock: 2
Need more? Lead Time 3-4 weeks
- Rated insulation voltage: 250 V AC
- Conv. thermal current: 10 A
- Rated operational voltage: 240 V
- Utilization category: AC-15, Ue/Ie 240 V / 3 A
- Direct opening action: acc. to IEC/EN 60947-5-1, Annex K
- Short-circuit protective device: Fuse 6 A gG
- Protection class: II, totally insulated
- Enclosure: Thermoplastic, glass fibre reinforced (UL 94-V0)
- Cover: Thermoplastic, glass fibre reinforced (UL 94-V0)
- Actuator: Roller (thermoplastic)
- Ambient air temperature: -30 °C ... +80 °C
- Contact type: 1 NC, 1 NO (Zb)
- Mechanical life: 3 x 106 operating cycles
- Switching frequency: ≤ 100 / min.
- Assembly: 2 x M4 or 2 x M5 fixed position for safety applications
- Connection: 4 screw connections (M3,5)
- Conductor cross-sections: Solid: 0,5 ... 1,5 mm² or Litz wire with ferrules: 0,5 ... 1,5 mm²
- Cable entrance: 1 x M16 x 1,5
- Weight: ≈ 0,05 kg
- Installation position: operator definable
- Protection type: IP65 acc. to EN 60529; DIN VDE 0470 T1
