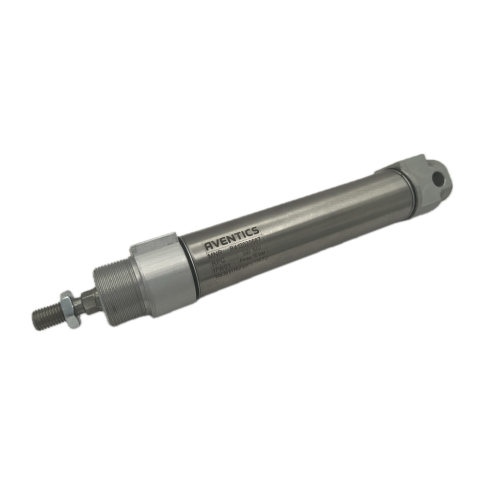

Aventics R412020687 Round Cylinder
SKU
RPC-DA-032-0100-12-1-2-BAS
32 mm piston with 100 mm stroke, M10x1,25 thread, G 1/8 port, 1 to 10 bar
In Stock: 6
- Type Version: compact type
- Piston Ø 32 mm
- Stroke 100 mm
- Functional principle Double-acting
- Cushioning Elastic cushioning
- Magnetic piston Piston with magnet
- Environmental requirements Industry standard, ATEX optional
- Piston rod single
- Scraper Standard
- Pressure for determining piston forces 6,3 bar
- Retracting piston force 435 N
- Extracting piston force 505 N
- Min. ambient temperature -20 °C
- Max. ambient temperature 80 °C
- Working pressure min. 1 bar
- Working pressure max 10 bar
- Ports G 1/8
- Piston rod thread M10x1,25
- Impact energy 0.8 J
- Weight 0 mm stroke 0.33 kg
- Weight +10 mm stroke 0.015 kg
- Stroke max. 1200 mm
- Medium Compressed air
- Min. medium temperature -20 °C
- Max. medium temperature 80 °C
