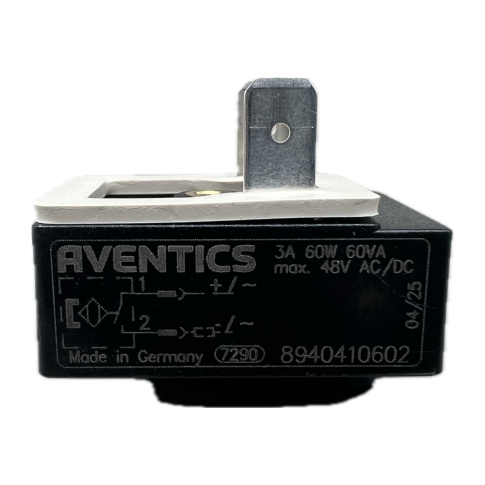

Aventics 8940410602 Sensor without LED
SKU
SN6-R2-DB09-048-No-LED
No LED. Can be used to replace Aventics 8940410612.
In Stock: 10
- Indirect mounting for series: TRB, ITS, 523
- Type of contact: Reed
- Switching capacity: 60 W / 60 VA
- Protection class: IP65
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 75 °C
- DC switching current, max.: 3 A
- AC switching current, max.: 3 A
- Switching point precision: ±0,1 mT
- Electrical connection 2, type: Form B, industry, Plug
- Electrical connection 2, number of poles: 2-pin
- Operating voltage DC, min.: 10 V DC
- Operating voltage DC, max.: 48 V DC
- Operating voltage AC, min.: 10 V AC
- Operational voltage AC, max.: 48 V AC
- Short circuit resistance: Protected against polarity reversal
- Shock resistance: 50 g / 11 ms
- Vibration resistance: 35 g (50 - 2000 Hz)
- Housing material: Polyester amide
