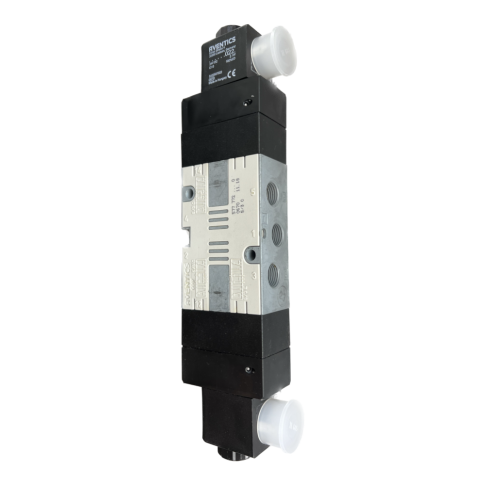

Aventics 5777720220 5/3-way Pneumatic Directional Valve
SKU
CD07-5/3CC-DO-024DC-I-G014
5/3-way Double Solenoid Operated Valve, 24 VDC, G-1/4" thread pipe connections with closed center position, double sided operation, supplementary hand operation (Double actuated, with manual actuation), without contact box
In Stock: 1
Need more? Lead Time 4-5 weeks
- Activation: Electrically
- Frame size: CD07
- Switching principle: 5/3, closed center
- Valve function: Closed Center
- Actuating control: Double Solenoid
- Manual override: with detent
- Pilot: Internal
- Nominal flow Qn: 900 l/min
- Compressed air connection: G 1/4
- Working pressure min.: 3 bar
- Working pressure max: 10 bar
- Operational voltage: 24 V DC
- Voltage tolerance DC: -10% / +10%
- Electrical connection type: Plug
- Electrical connection size: EN 175301-803, form A
- Connector standard: EN 175301-803:2006
- Protection class with connection: IP65
- Reverse polarity protection: Protected against polarity reversal
- Pilot valve width: 30 mm
- Compatibility index: 13, 14
- Duty cycle: 100 %
- Typ. switch-on time: 25 ms
- Typ. switch-off time: 55 ms
- Sealing principle:soft seal
- Min. ambient temperature: -25 °C
