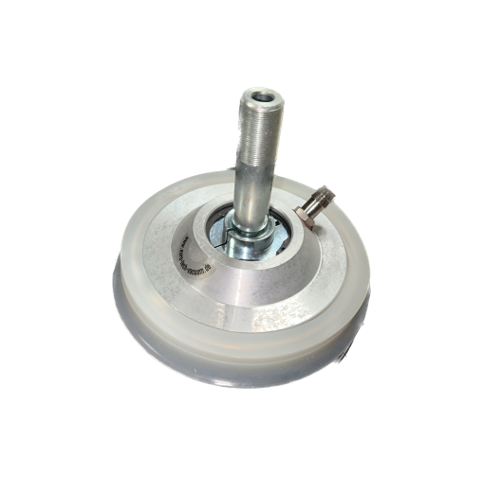

euroTECH Suction Cup Assembly BSP 160 LFW R-K 20 x 84

SKU
BSP.168.241.RK.001
euroTECH clear silicone Suction Cup Assembly BSP 160 LFW R-K (BSP.168.241.RK.001), 160mm diameter, 109.5mm height, M20 x 1.5mm articulating suspension bolt attached to baseplate, connecting nipple G1/4" x 12.
In Stock: 1
Need more? Lead Time 3-4 weeks
$214.00
  • Diameter: 160 mm
  • Suspension bolt 20 x 84mm
  • Carrying capacity (vertical): 54 Kg
  • Carrying capacity (horizontal): 108 Kg
  • euroTECH article #BSP.168.241.RK.001
  • Special discounts available for ordering larger quantities. Please contact us for a quote.

More Information

More Information
Description

Suction Cup Assembly BSP 160 LFW, R-K, Silicone Ø 160 mm, seal in transparent silicone to roll up onto the Baseplate, articulated suspension bolt Ø 20 x 84 mm with M20 x 1.5 outside thread, Baseplate R-K version with connecting nipple G1/4" x 12 as vacuum connection, includes spring, castle nut and split pin.

They are available in diameter 120 mm and 160 mm.

Industry All
Style Flat
Shape Round
Material Clear Silicone
Includes Suction Cup Complete Assembly
Baseplate Included Yes
